Multifunction Loop Calibrator
ADT220
AA highly integrated loop calibrator featuring several patented technologies, the ADT220 is an ultra-compact, rugged, and ease-to-use hand-held device for sourcing, simulating and measuring loop current, mV and V, checking loop integrity, and capture switches. Its smart phone-like menu and interface make the operation simpler and easier. The ADT220 is ideal for calibrating, maintaining, and troubleshooting various loop devices on site.Specifiche
|
Measurement accuracy
|
|||
|
|
Range
|
Resolution
|
Accuracy
|
|
Voltage DC
|
-300.000 to 300.000 mV
|
1µV
|
0.01%RD+0.005%FS
|
|
-60.0000 to 60.0000 V
|
0.1mV
|
0.01%RD+0.005%FS
|
|
|
Current DC
|
-30.0000 to 30.0000 mA
|
0.1µA
|
0.01%RD+0.005%FS
|
|
Loop integrity test
|
0 to 2000.0 ohm
|
0.1 Ω
|
0.02%RD+0.2 Ω
|
|
Frequency
|
1 to 50000.0 Hz
|
0.1Hz
|
0.005%RD+0.002%FS
|
|
On/off
|
In case the switch comes with voltage, the voltage range: 3 to 24V
|
||
|
Source accuracy
|
|||
|
Voltage DC
|
-10.00 to 200.000 mV
|
0.01mV
|
0.02%RD+0.005%FS
|
|
0 to 12.0000 V
|
1mV
|
0.02%RD+0.005%FS
|
|
|
Current DC
|
0 to 22.000 mA
|
1µA
|
0.02%RD+0.005%FS
|
|
DC24V
|
N/A
|
N/A
|
0.5V
|
General Specifications
|
Environmental Specifications
|
|
|
Operating Temperature
|
-10°C to 50°C
|
|
Storage Temperature
|
-20°C to 60°C
|
|
Humidity
|
<90%, non-condensing
|
|
|
|
|
Safety specifications
|
|
|
European Compliance
|
CE Mark
|
|
|
|
|
Mechanical Specifications
|
|
|
Display
|
3.5 inch TFT color screen
|
|
Electrical Connection
|
φ4mm sockets
|
|
RS232 Interface
|
standard RS232‐DB9 socket
|
|
Size
|
3.9” x 7.6” x 2.0” (100mm x 192mm x52mm)
|
|
Weight
|
1.6 lb (0.7 kg)
|
|
Power Supply
|
Polymer Li‐ion rechargeable battery, or 10V DC adaptor
|
|
Battery
|
Rechargeable Li-ion battery (included)
|
|
Battery Life
|
15 hours uninterrupted use
Battery life will be reduced when 24V is applied
|
|

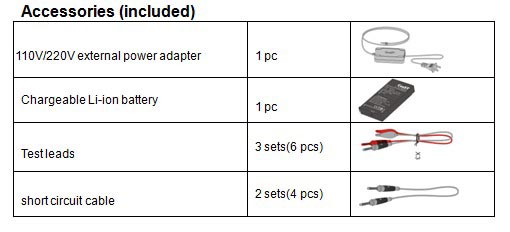

Battery Charge
|
110V/220V external power adapter (included)
|

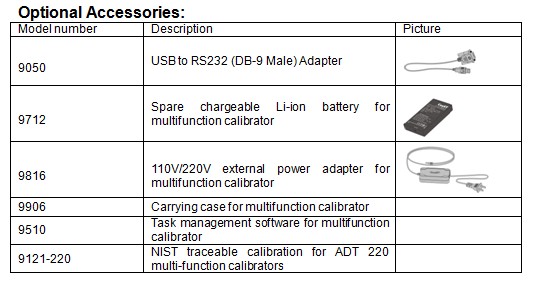

Ordering Information
Model number: ADT 220
